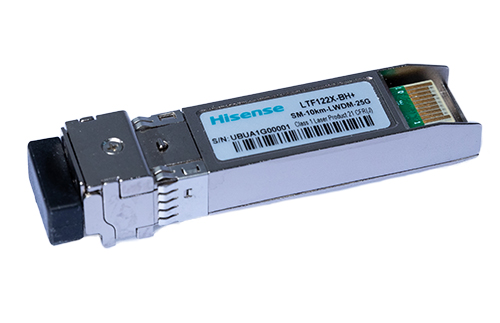

LTF122X SFP28 Optical Transceiver

25.78125Gb/s LWDM 10km

The LTF122X SFP+ footprint transceiver is intended for LWDM 10km reach service 25.78125Gb/s high-speed communications equip-ment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates base on 3.3V DC power supply. They are compliant with SFP28 MSA , SFF-8431 and SFF-8432. The low jitter and low bit error rate optical assembly features DML laser transmitter and PIN/TIA receiver. It incorporates the SFP+ MSA LVTTL Loss of Signal (Rx_LOS), Tx Fault (Tx_FAULT), MOD_ABS and Tx Disable (Tx_DIS) monitor and control functions. It utilizes internal clock and data recovery (CDR) units on transmitter and the receiver chains for low jitter compliance. The differential AC coupled Tx and Rx data interfaces are CML compatible. It is FDA 21CFR1040.10 and IEC/EN 60825-1:2014, IEC/EN 60825-2:2010 Class I laser safety compliant .

加入询单
Part Number Package Interface Reach Temp Fiber Type Wavelength Rate Tx Output Rx Input
LTF122X-BH+ SFP28 LC 10km H Single-mode 1269.23nm
1273.54nm
1277.89nm
1282.26nm
1286.66nm
1291.10nm
1295.56nm
1300.05nm
1304.58nm
1309.14nm
1313.73nm
1318.38nm
25.78125Gb/s 1~7dBm -14dBm(OMA)

• 25G BASE-LR Ethernet

• LC Duplex optical interface

• Maximum link length of 10km

• 25.78125Gb/s  data links

• High sensitivity PIN/TIA optical receiver

• Built-in CDR

• Standards:

  SFP28 MSA ,

  SFF-8431

  SFF-8432
