This single-fiber optical subassembly is designed for FTTx applications. It is integrated with one 2.5Gb/s 1270nm DFB LD and one 10Gb/s 1577nm Receiver with APD together with optical filters for beam direction.

Picture Product Name Part Number Interface Temp Tx Output Tx Rate Tx Wavelength Rx Input Rx Rate Rx Wavelength

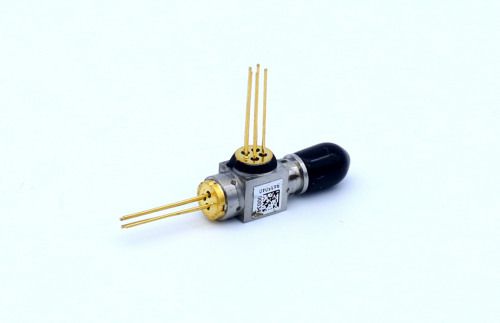

XGPON ONU BOSA HDB2548 SC Receptacle
SC/APC Pigtail
SC/UPC Pigtail
C,H >2.4mW 2488Mb/S 1270nm -29.5dBm 9953Mb/s 1577nm 1577nm

•  XGPON ONU application

•  DFB  uncooled laser diode

•  High sensitive 10G APD/TIA

•  SC Receptacle connector

•  Standards:  ITU-T G.987.2
