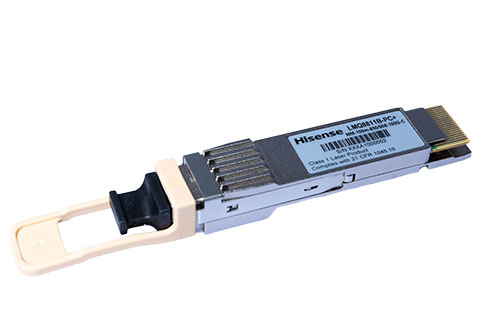

LMQ8811B QSFP-DD SR4.2 8

x26.56GBaud 850nm/908nm Transceiver

The LMQ8811B is a QSFP-DD Optical transceiver for 8 x 26.56GBaud optical links. It is compliant with the QSFP-DD MSA specifications. It operates at 26.56GBaud up to 100m over OM4 Multi-mode fiber.

加入询单
Part Number Package Interface Reach Temp Fiber Type Wavelength Rate Tx Output Rx Input
LMQ8811B-PC+ QSFP-DD MPO 100m C Multi-mode 850nm 8x25Gb/s -6.5~4dBm(each lane) -8.5~4dBm (each lane)

• High performance computing interconnect

• Data center

• 8x50 Gbps MMF optical interface

• Each electrical channel data rate up to 26.56GBaud with CDR

• Hot Pluggable

• Up to 100m link on OM4 Multi-mode Fiber

• 850nm/908nm VCSEL 850nm/908nm PD Array Technology

• CML Compatible electrical I/O

• QSFP-DD MSA HW Rev4.0 Compliance

• CMIS V4.0 Compliance

• Optical connectivity via industry standard MPO/MTP terminated fiber ribbon

• MPO12 PC Optical Receptacle Type

• Monitors for VCSEL bias, transmitted power, received power, module temperature, and module power supply

• Case Operating Temperature:

Commercial: 0 to 70ºC

• RoHS II Compliance
