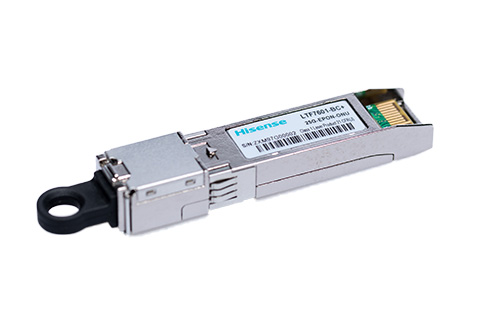

SFP28 25G EPON ONU Transceiver

The LTF7601 is intended for 25G EPON ONU DEMO in  separate SFP28 housing. It is a series module with an O-band 25.78Gbps upstream  transmitter and a O-band 25.78Gbps downstream receiver which work in TDM configuration. The transmitters can be controlled by the LVTTL Tx_Burst function and the receivers incorporate the LVTTL Rx_LOS output.

The LTF7601 is designed to support up to 16 subscribers over distances of up to 20km in the ODN.  It is FDA 21CFR1040.10 and IEC 60825-2 Class I laser safety compliant and meets the EEC Directive 2002/95/EC for RoHS compliance.


加入询单
Product Name Part Number Package Interface Reach Temp Tx Output Tx Rate Tx Wavelength Rx Input Rx Rate Rx Wavelength
25G EPON ONU LTF7601-BC+ SFP28 SC 20km C 1.3~7dBm 25.78Gb/s 1260nm~1280nm -21.4dBm 25.78Gb/s 1328nm~1360nm

25G EPON Access networks

• FTTH

•  FTTB

• FTTC


SFP28 Package Control and Monitor Interface

• 3.3V power supply   LVTTL Tx_Burst

• 2 Lambda   LVTTL Rx_LOS

• Single SC receptacle optical connector    LVTTL TX_Fault

• Hot pluggable   LVTTL TX_SD

• 2x10 SFP28 Electrical Interface   LVTTL P_Down
