QSFP112 50G GPON OLT Transceiver

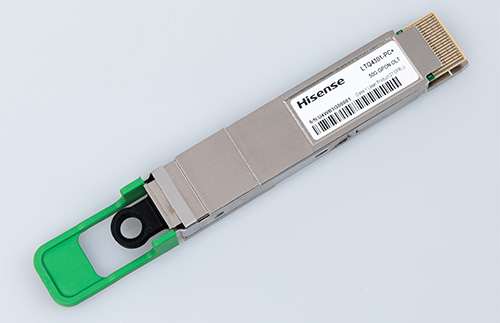

The LTQ4301-PC+ is intended for 50G GPON OLT DEMO in a QSFP112 housing. It is using a 1342nm 49.7664Gbps downstream transmitter and a 24.8832Gbps/12.5Gbps upstream receiver which work in TDM configuration. The LTQ4301-PC+ is designed to support up to 16 subscribers over distances of up to 20km in the ODN ,which is just for the 50G GPON pre-DEMO experiment. It meets the EEC Directive 2015/863/EU for RoHS compliance.

Product Name Part Number Package Interface Reach Temp Tx Output Tx Rate Tx Wavelength Rx Input Rx Rate Rx Wavelength
50G GPON OLT LTQ4301-PC+ QSFP112 SC 20km C -2dBm~ 49.7664 Gb/s 1340nm~1344nm -22.7dBm 24.8832/12.5 Gb/s 1290~1310nm

• 50G GPON  OLT DEMO Samples




• QSFP112 Package

• 3.3V power supply

• 2 Lambda

• Single SC receptacle optical connector

• Hot pluggable

• 2x19 QSFP112 Electrical Interface
