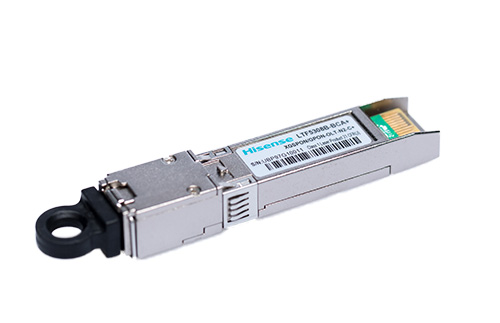

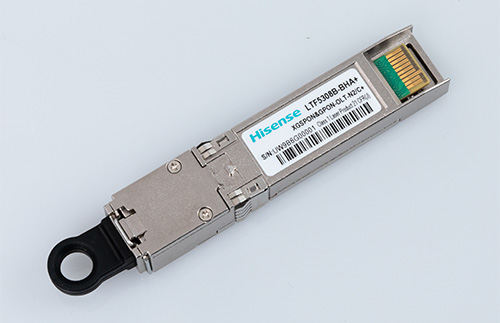

LTF5308B SFP+ OLT Transceiver
XGS-PON/GPON Combo OLT Transceiver Symmetrical 9.953Gbps OLT
The LTF5308B is a combination of XGS-PON OLT and GPON OLT optical transceiver in a SFP+ housing. It is designed to support both the XGS-PON OLT and the GPON OLT specifications over a single fiber via coarse wave division multiplexing. The XGS-PON bidirectional link is configured with 1270nm/1577nm optics and the GPON link is configured with 1310nm/1490nm optics. The 1270nm and 1310nm optical burst mode receivers incorporate APD/TIA optics for maximum sensitivity. The 10G transmitter incorporates a 1577nm EML laser assembly and the 2.5G transmitter incorporates a 1490nm DFB laser assembly. The transmitters can be controlled by the LVTTL Tx_DISABLE function and the receivers incorporates the LVTTL Rx_SD output.
The LTF5308B is designed to support up to 32/64 subscribers over distances of up to 20km. It is FDA 21 CFR1040.10 and IEC 60825-2 Class I laser safety compliant and meets the EEC Directive 2002/95/EC for RoHS compliance.
| Product Name | Part Number | Package | Interface | Reach | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|
| XGSPON&GPON Combo OLT N1-B+ |
LTF5308B-BC+ LTF5308B-BH+ |
SFP+ | SC | 20km | C,H | 2~5dBm 1.5~5dBm |
9.953Gb/s 2.488Gb/s |
1577nm 1490nm |
-26dBm ( BER@10-3) -27.5 (BER@10-4) -28dBm ( BER@10-3) -30 (BER@10-4) |
9.553/2.488Gb/s 1.244Gb/s |
1260~1280nm 1290~1330nm |
• 10 Gigabits Access networks
• Fiber to the Home
• Fiber to the Building
• Fiber to the Curb
• SFP+ Package
• 3.3V DC power supply
• 4 Lambda
• SC receptacle optical connector
• Hot pluggable
• 2x10 SFP+ Electrical Interface
• ITU-T G.9807.1 Class N1 compliant
• ITU-T G.987.2 Class N1 compliant
• ITU-T G.984.2 Class B+ compliant
• YD-T 1688.8 D1 Class compliant
