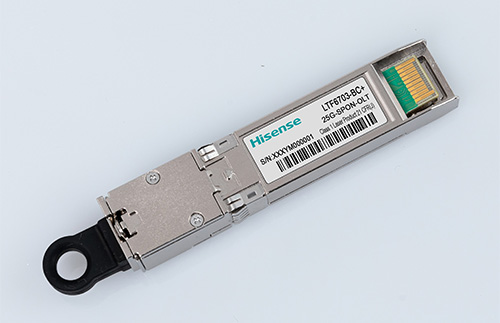

SFP28 25GSPON OLT Transceiver
The LTF6703 is intended for 25GSPON OLT DEMO in an SFP28 housing. It is using an 1358nm 25.781Gbps&24.8832Gbps downstream transmitter and a 1260nm-1310nm 25.781Gbps&24.8832Gbps upstream receiver which work in TDM configuration. The transmitters can be controlled by the LVTTL Tx_DISABLE function and the receivers incorporates the LVTTL Rx_LOS output.
The LTF6703 is designed to support up to 32 subscribers over distances of up to 20km in the ODN. It meets the EEC Directive 2015/863/EU for RoHS compliance
加入询单| Product Name | Part Number | Package | Interface | Reach | Temp | Tx Output | Tx Rate | Tx Wavelength | Rx Input | Rx Rate | Rx Wavelength |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 25GSPON OLT | LTF6703-BC+ | SFP28 | SC | 20km | C | 4.1~7.8dBm | 25.78125Gbps& 24.8832Gbps Gb/s |
1358nm | -24.3dBm | 25.78125Gbps& 24.8832Gbps |
1260~1310nm |
• 25GSPON DEMO Samples
• FTTH
• FTTB
• FTTC
• SFP28 Package
• 3.3V power supply
• 2 Lambda
• Single SC receptacle optical connector
• Hot pluggable
• 2x10 SFP28 Electrical Interface
