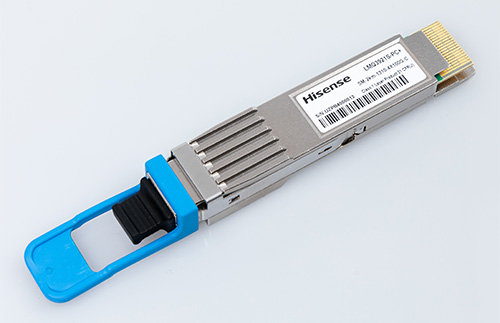

LMQ3921S-PC+ Transceiver 4x100G 2km QSFP-DD DR4+ Transceiver

The LMQ3921S-PC+ is a QSFP-DD Optical transceiver for 4x100Gb/s optical links. It is compliant with the of QSFP-DD MSA specifications. It operates at 53.125GBaud up to 2km over single-mode fiber.

Part Number Package Interface Reach Temp Fiber Type Wavelength Rate Tx Output Rx Input
LMQ3921S-PC+ QSFP-DD MPO 2km C Single-mode 1310nm 4x100Gb/s -2.9~4dBm(each lane) -5.9~4dBm (each lane)

• High performance computing interconnect

• Data center

• 8 independent electrical input/output channels

• 4 independent parallel optical channels

• MPO optical connector

• Hot Pluggable

• 2km link on SMF single-mode Fiber

• Silicon photonics Technology

• QSFP-DD MSA Compliance

• Case Operating Temperature:

•  Commercial: 0 to 70ºC

• RoHS II Compliance
