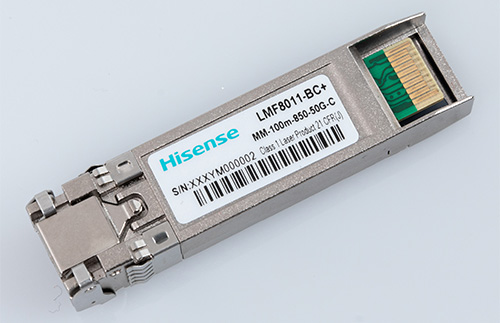

LMF8011 SFP56 Optical Transceiver

50G Ethernet 26.56GBaud 850nm 100m

The LMF8011 is SFP56 transceiver. It operates at 26.56GBaud and up to 100m with a 2-fiber duplex LC OM4 multi-mode fiber. It is compliant with SFF-8431、SFF-8432 and SFF-8472.It incorporates the SFP+ MSA LVTTL Loss of Signal (Rx_LOS), Tx Fault (Tx_FAULT), MOD_ABS and Tx Disable (Tx_DIS) monitor and control functions. The differential AC coupled Tx and Rx data interfaces are CML compatible.

Part Number Package Interface Reach Temp Fiber Type Wavelength Rate Tx Output Rx Input
LMF8011-BC+ SFP56 LC 100m C Multi-mode 850nm 50Gb/s -6.4~4dBm -8.4~4dBm

• High performance computing interconnect

• Data center

LC Duplex optical interface

Reach: max up to 100m on OM4 MMF

2x10 SFP+  MSA compliant package

SFF-8472 Compliance

High performance 850 nm VCSEL laser

High sensitivity PIN/TIA optical receiver

Case Operating temperature range:

Commercial: 0 to 70ºC

2-wire I2C data bus

RoHS compliance
