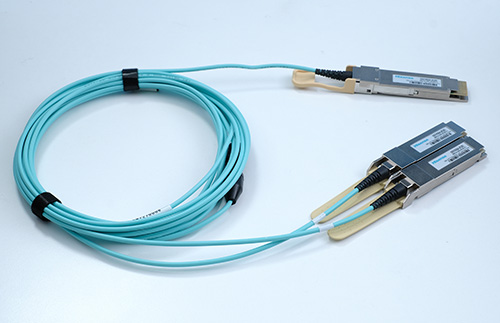

DEF8504 QSFP-DD to 2x QSFP28 AOC<br>200Gb/s to 2x100Gb/s Active Optical Cable
The DEF8504 is a QSFP-DD active optical cable (AOC) to 2× QSFP28 Active Optical Cable break-out. It operates at 25.78Gb/s and the cable length is up to 100m. QSFP-DD AOC end is compliant with the QSFP-DD MSA specifications. Each QSFP28 end is compliant with the QSFP28 MSA, IEEE P802.3bm 100GBASE- SR4 specifications.
加入询单| Part Number | Package | Interface | Reach | Temp | Fiber Type | Wavelength | Rate | Tx Output | Rx Input |
|---|---|---|---|---|---|---|---|---|---|
| DEF8504-2CXX | QSFP28/QSFP-DD | Cable | 1~100m | C | Multi-mode | 850nm | 200Gb/s/2x100Gb/s | - | - |
• High performance computing interconnect
• 200GbE and 100GbE break-out applications
• Each channel data rate up to 25.78Gb/s with integrated CDR
• Hot Pluggable
• Up to 100m link over OM4 Multi-mode Fiber with 5E-05 BER
operation and host side enable FEC
• CML Compatible electrical I/O
• QSFP-DD MSA Compliance
• QSFP28 MSA Compliance
• Case Operating Temperature Range:
Commercial: 0 to 70ºC
RoHS compliance
