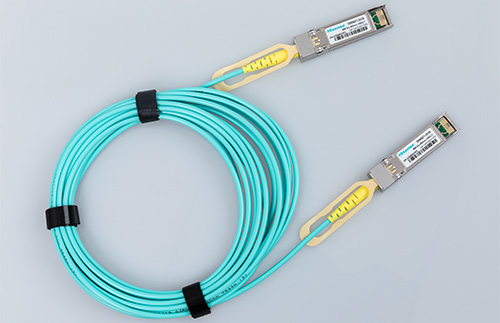

100G Active Optical Cable

The DMM8211 is a DSFP active optical cable (AOC) for 2 x 26.56GBaud optical links. It is compliant with the DSFP MSA specifications.  It operates at 26.56GBaud and the cable length is up to 100m. It is FDA 21CFR1040.10 and IEC/EN 60825-1:2014, IEC/EN 60825-2:2010 Class 1 laser safety compliant.

Part Number Package Interface Reach Temp Fiber Type Wavelength Rate Tx Output Rx Input
DMM8211-DCxx DSFP Cable 1~100m C Multi-mode 850nm 2x50Gb/s - -

• High performance computing interconnect

• Data center

2 independent parallel optical channels

Each channel data rate up to 26.56GBaud with integrated CDR

Hot Pluggable

Up to 100m link over OM4 Multi-mode

CML Compatible electrical I/O

DSFP MSA  Compliance

CMIS 4.0 Compliance

Case Operating Temperature Range:

Commercial: 0 to 70ºC

RoHS compliance
