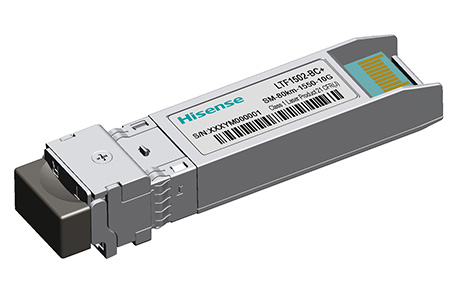

LTF1502 SFP+ Optical transceiver

10G Ethernet 1550nm 10.3125Gb/s 80km

The LTF1502 SFP+ transceiver is intended for 80km reach service 10.3125Gb/s 1550nm single mode high-speed communications equipment where low-cost, extraordinary performance and reliability are essential. It consumes low power, operates from a 3.3V DC power supply and is offered in the Commercial temperature range. They are compliant with 10G Ethernet-ZR, SFF-8431 and SFF-8432

Part Number Package Interface Reach Temp Fiber Type Wavelength Rate Tx Output Rx Input
LTF1502-BC+ SFP+ LC 80km C Single-mode 1550nm 10Gb/s 0~4dBm -24dBm

• 10G BASE-ER/EW 10G Ethernet

•  LC Duplex optical interface

•  Maximum link length of 40km

•  10.3125Gb/s

•  +3.3 V power supply

•  Low DC power consumption

• 2x10 SFP+ MSA compliant package

•  Hot swappable

•  High performance 1550nm EML laser

•  High sensitivity APD/TIA optical receiver

• Single Mode operation

•  BER < 1X10-12
