GPON HGU
HBG6878A

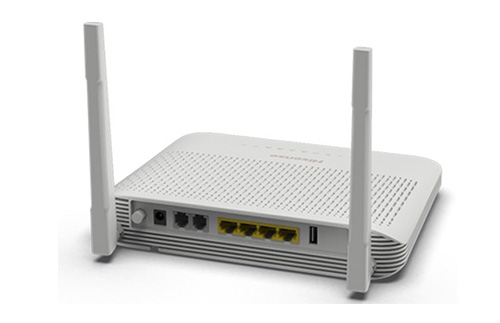

This ONT is a dual-band Optical Network Terminal (ONT) that supports gigabit access over both Wi-Fi 5 and GE network ports. This device features one PON port, four GE ports, one USB 2.0 port, and 2.4G and 5G Wi-Fi 5 connectivity.
加入询单Standards: ITU-T G.984.x
Optical Module: Class B+, BOB
Data rate: 2.488Gbps/1.244Gbps D/U
Wavelength: 1310nm/1490nm
Max Distance: 20KM
TX Output: +0.5dBm ~ +5.0dBm
RX Input: < -28dBm
Wireless
Standards: IEEE 802.11 a/b/g/n/ac
Wi-Fi EasyMesh
Frequency: 2.4GHz & 5GHz
Antenna: 2*External
Interfaces
Optical interface: 1 GPON port, SC/APC
Ethernet: 4*GE RJ45 ports
Telephone: (2*FXS RJ11 ports optional)
USB: 1USB2.0
